Qseven module with Intel® Atom® SOC

H6089

Introducing the H6089: the powerful and energy-efficient computer-on-module (COM) that’s perfect for high-performance IoT and edge computing devices. This compact device packs a punch with the latest Intel® Atom® Elkhart Lake SoC and 11th generation Intel® IHD Graphics Engine GPU. It features a dual or quad-core CPU and I/O controller, making it ideal for applications that require low power consumption. With its versatile capabilities, the H6089 is a great choice for industrial automation, retail, and transportation.

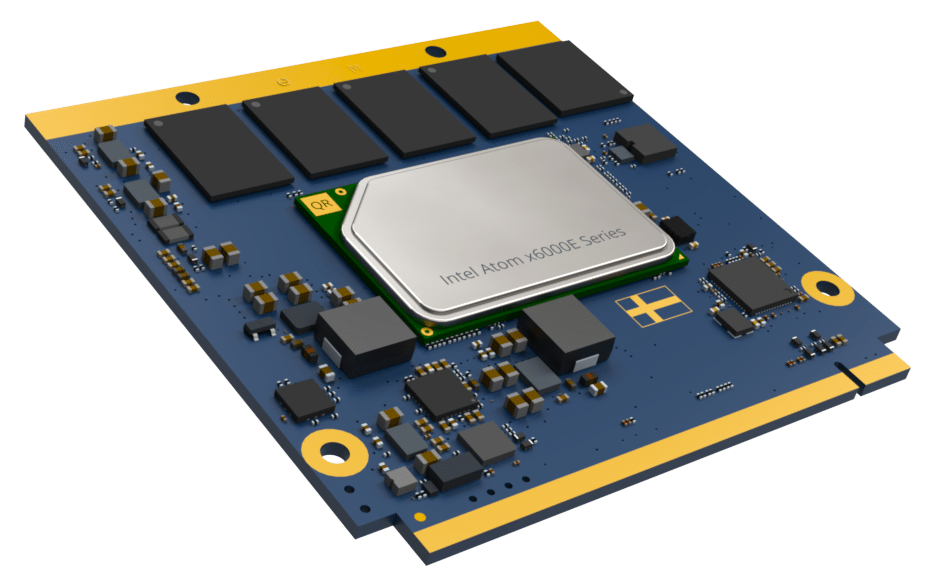

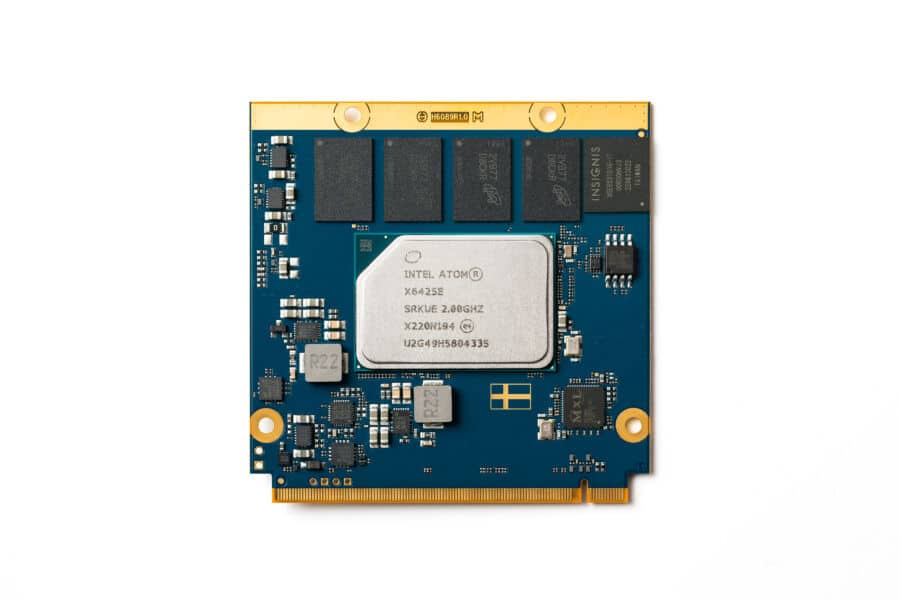

H6089 - Our latest Qseven Module

The H6089 is a powerful yet energy-efficient computer-on-module (COM) that packs a punch in a compact 70mm x 70mm form factor. Based in the Intel® Atom® Elkhart Lake SoC, it boasts the latest 11th generation Intel® IHD Graphics Engine GPU, a dual or quad core CPU, an I/O controller, making it a suitable solution for high-performance applications that requires low power consumption. Its compact size and versatile capabilities make it an ideal choice for Internet of Things (IoT) and edge computing devices including industrial automation, retail and transportation.

Why Elkhart Lake?

Intel® Atom® Elkhart Lake is a low-power, x86-based system-on-chip (SoC) processor developed by Intel®. It is intended for use in IoT and edge computing applications, such as industrial automation, retail and transportation. The processor is based on the 10nm technology and features multiple cores, support for memory and storage, and integrated security features. It is designed to deliver high performance and energy efficiency, while also providing a platform for running multiple applications and operating systems.

qseven, h6089, hectronic
qseven, h6089, hectronic

Features

  • Dual or Quad core Intel® Atom® SOC
  • 11th generation Intel® UHD Graphica Engine
  • Industrial temperature range (-40C to +85C)
  • Up to three USB 3.1 or up to eight USB 2.0
  • Optional on-board eMMC Flah storage
  • Soldered LPDDR4x RAM memory
  • Dual 24-bit LVDS
  • Compatible with Qseven revision 2.1
  • First Atom® CPU with support for Windows 11
