Mini-ITX – Pico-ITX

ITX

This is a low-power CPU board form factor often used in passively cooled embedded systems. Mini-ITX has similarities with for example ATX and microATX form factors but is significantly smaller (170mm x 170mm). The form factor was announced by VIA Technologies in 2001.

Pico-ITX is a low-power single board computer form factor often used in passively cooled embedded systems. The dimensions of an embedded Pico-ITX motherboard are 100mm x 72mm which is half the area of Nano-ITX. Today embedded Pico-ITX single board computers can use the choice of either ARM or x86-based platforms. The compact size, low power consumption and high performance makes embedded Pico-ITX SBCs ideal for many space-constrained embedded design applications and markets. This includes industrial automation, medical, maritime, communication and transportation.

Questions about Pico-ITX and Mini-ITX? Get in touch!

ITX - Product listing

Pico-ITX

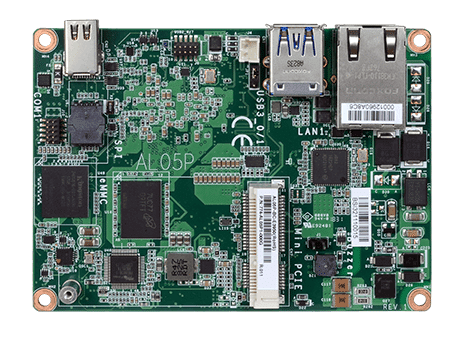

AL05P

AL05P

– Intel® Atom® processors (Apollo Lake)
– Up to 4GB SDRAM (Soldered DDR4 2400MHz)
– PoE Powered Devices 48VDC
– Standard or Extended temperature

Read more

pico itx, sbc, single board computer

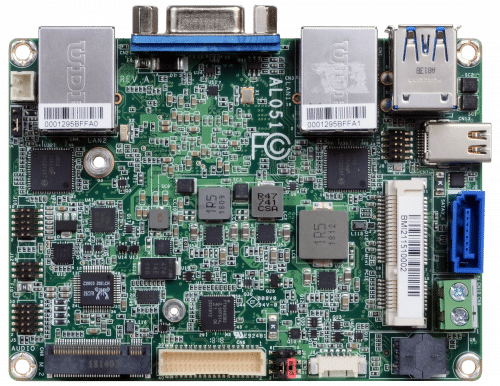

AL051

– Intel® Atom® X processors (Apollo Lake)
– Up to 8GB RAM (1 x SODIMM for DDR3L 1866 MHz)
– Tripple Display (VGA, Mini DP & LVDS)
– Standard, Extended or Industrial temperature

Read more

pico itx, sbc, single board computer

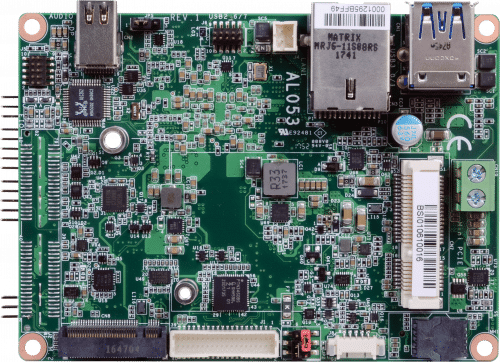

AL053

– Intel® Atom® X processors (Apollo Lake)
– Up to 8GB RAM (1 x SODIMM for DDR3L 1866 MHz)
– Wide DC input (9 – 36V)
– Standard, Extended or Industrial temperature

Read more

PICO-KBU4, pico itx, sbc, single board computer

PICO-KBU4

– 7th Generation Intel® Core™ Processors (Kaby Lake)
– Up to 16GB RAM (1 x SODIMM for DDR4 1866/2133 MHz)
– Expansion slot: M.2. 2230 (E Key),  Option BIO module
– Standard temperature

Read more

PICO50R, sbc, single board computer, pico-itx, itx

PICO50R

– 6th Generation Intel® Core™ or Celeron® Processors (Skylake)
– Up to 16GB RAM (1 x SODIMM for DDR4 2133 MHz)
– Expansion slot: M.2. 2230 (E Key)
– Extended temperature

Read more

PICO51R, sbc, single board computer, pico-itx, itx

PICO51R

– 7th Generation Intel® Core™ and Celeron® Processors (Kaby Lake)
– Up to 16GB RAM (1 x SODIMM for DDR4 2133 MHz)
– Expansion slot: M.2. 2230 (E Key)
– Extended temperature

Read more

pico itx, sbc, single board computer

PICO318

– Intel® Atom™ and Celeron® N Processor (Apollo Lake)
– Up to 8GB RAM (1 x SODIMM for DDR3L 1867 MHz)
– 1 x Half-size PCI Express Mini Card slot with mSATA support
– Extended temperature

Read more

PICO319, sbc, single board computer, pico-itx, itx

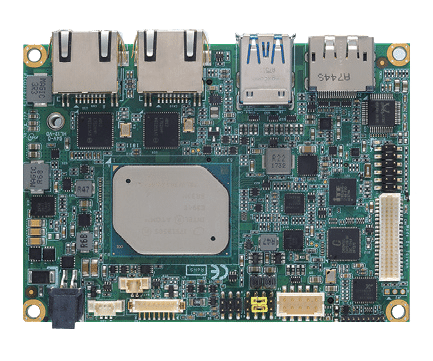

PICO319

– Intel® Atom® X processors (Apollo Lake)
– Up to 8GB RAM (1 x SODIMM for DDR3L 1867 MHz)
– 1 x Half-size PCI Express Mini Card slot with mSATA support
– Industrial temperature

Read more

pico itx, sbc, single board computer

PICO512

– 7th Generation Intel® Core™ Processors (Kaby Lake)
– Up to 16GB RAM (1 x SODIMM for DDR4 2133 MHz)
– 1 x Full-size PCI Express Mini Card slot with mSATA support
– Extended temperature

Read more

pico itx, sbc, single board computer

RICO-3288

– Rockchip RK3288 ARM Cortex™-A17 Quad-core processor
– 2GB RAM (Soldered DDR3L)
– Optional 7.4V Battery power input
– Standard temperature

Read more

pico itx, sbc, single board computer

RICO-3399

– Rockchip RK3399 ARM Cortex™-A72 (Dual) or -A53 (Quad) processor
– 2GB RAM (Soldered LPDDR3)
– Optional 7.4V Battery power input
– Standard temperature

Read more

Mini-ITX

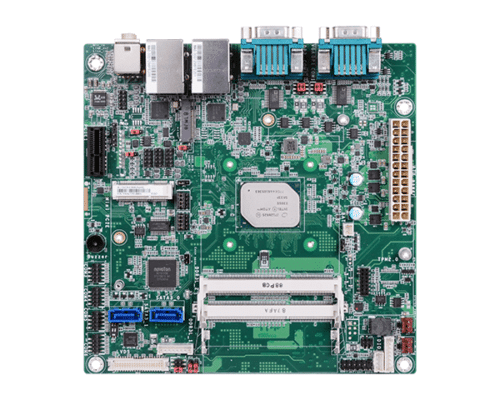

AL170, sbc, single board computer, mini-itx, itx

AL170

– Intel® Atom™ and Celeron® Processor (Apollo Lake)
– Up to 8GB RAM (2 x SODIMM for DDR3L 1867 MHz)
– Tripple display support
– Standard or Industrial temperature

Read more

mini itx, sbc, single board computer

CS100

– Socket LGA1151, for 8th generation Intel® Core™ processor (Coffee Lake), TDP up to 80W
– Up to 32GB RAM (2 x SODIMM for DDR4 2400/2666 MHz)
– Chipset: Intel® Q370, C246 or H310
– Standard temperature

Read more

CS101-H310, sbc, single board computer, mini-itx, itx

CS101-H310

– Socket LGA1151, for 8th generation Intel® Xeon or Core™ processor (Coffee Lake), TDP up to 80W
– Up to 32GB RAM (2 x SODIMM for DDR4 2666 MHz)
– Expansion: M.2 2230 (E Key) and 1 x PCIe x4 (Generation 3)
– Standard temperature

Read more

mini itx, sbc, single board computer

CS101 -Q370/C246

– Socket LGA1151, for 8th generation Intel® Xeon or Core™ processor (Coffee Lake), TDP up to 80W
– Up to 32GB RAM (2 x SODIMM for DDR4 2666 MHz, ECC support with C246)
– Tripple display support
– Standard temperature

Read more

mini itx, sbc, single board computer

EMB-APL3

– Intel® Pentium®, Celeron® or Atom™ Processor (Apollo Lake)
– Up to 8GB RAM (2 x SODIMM for DDR3L  1333/1600/1867 MHz)
– Expansion: M.2 2230 (E Key) and PCIe 2.0 (1x)
– Standard temperature

Read more

mini itx, sbc, single board computer

EMB-BSW1

Not recommended for new design!

Last time buy date is 2019-12-31

– Intel® Pentium® or Celeron® N Processor (Braswell)
– Up to 8GB RAM (2 x SODIMM for DDR3L 1600 MHz)
– Tripple display support
– Standard temperature (0 – 55C)

Read more

mini itx, sbc, single board computer

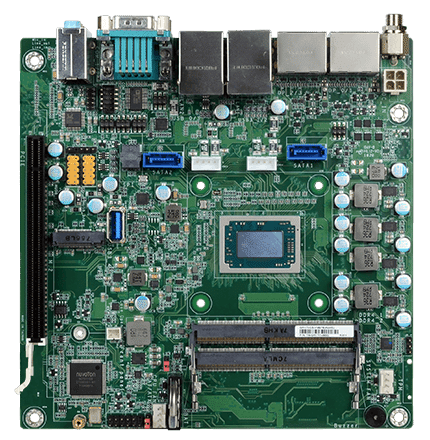

GH171

– AMD® Ryzen™ V1000/R1000 Series Processor
– Up to 32GB RAM (2 x SODIMM for DDR4 3200 MHz)
– Quadruple display support
– Standard temperature

Read more

KD171, mini itx, sbc, single board computer

KD171

– Socket LGA1151, for 6/7th generation Intel® Core™ processor (Skylake or Kaby Lake), TDP up to 65W
– Up to 32GB RAM (2 x UDIMM for DDR4 2133/2400 MHz)
– Tripple display support
– Standard temperature

Read more

KU171 KU173, mini itx, sbc, single board computer

KU171/KU173

– 7th Generation Intel® Core™ Processors (Kaby Lake)
– Up to 32GB RAM (2 x SODIMM for DDR4 1866/2133 MHz)
– DC-in, Ku171 (12V), KU173 (9-36V)
– Standard or Extended temperature

Read more

mini itx, sbc, single board computer

MANO315

– Intel® Celeron® J Processor (Apollo Lake)
– Up to 8GB RAM (1 x SODIMM for DDR3L 1866 MHz)
– Expansion: PCIe Mini card and PCIe (1x)
– Standard temperature

Read more

mini itx, sbc, single board computer

MANO520

– Socket LGA1151, for 8th generation Intel® Core™ processor (Coffee Lake)
– Up to 32GB RAM (2 x SODIMM for DDR4 2666 MHz)
– Chipset: Intel H310, optional Intel Q370
– Standard temperature

Read more

Mano521, mini itx, sbc, single board computer

MANO521

– Socket LGA1151, for 8th generation Intel® Core™ processor (Coffee Lake)
– Up to 32GB RAM (2 x SODIMM for DDR4 2400/2666 MHz)
– Chipset: Intel H310, optional Intel Q370
– Standard temperature

Read more

mini itx, sbc, single board computer

MIX-H310A1

– Socket LGA1151, for 8th generation Intel® Core™ processor (Coffee Lake), TDP up to 65W
– Up to 32GB RAM (2 x SODIMM for DDR4 2133/2400/2666 MHz)
– 3 x Intel® LAN 211AT support
– Standard temperature

Read more

SD106-Q170, sbc, single board computer, mini-itx, itx

SD106-Q170

– Socket LGA1151, for 6th generation Intel® Core™ processor (Skylake)
– Up to 32GB RAM (2 x SODIMM for DDR4 1866/2133 MHz)
– Wide DC-in (15-36V)
– Standard temperature

Read more

SD170, sbc, single board computer, mini-itx, itx

SD170

– Socket LGA1151, for 6/7th generation Intel® Core™ processor (Skylake or Kaby Lake), TDP up to 65W
– Up to 32GB RAM (2 x SODIMM for DDR4 2133 MHz)
– 4 x Intel® LAN I210AT or Intel® LAN I211AT support
– Standard temperature

Read more
