Qseven Modules: Compact, Efficient, and Customizable Embedded Solutions

Qseven Module

The Qseven (Q7) standard is specifically designed for embedded mobile applications and integrates all core components of a common PC onto the extremely compact board. The Qseven board is mounted onto an application specific carrier board to offer customer-specific requirements. Dimensions are 70 mm x 70 mm with a maximum of 12 watt power consumption. Heat dissipation is kept at a minimum and fan-less operation possible. A robust and cost-efficient 230 pin MXM connector is used to connect the Qseven module with the carrier board. This MXM connector is a well-known high speed signal interface connector that is commonly used for high speed PCI Express graphics.

Discover our Qseven Modules below or contact us!

Qseven Modules - Product listing

qseven, h6089, hectronic

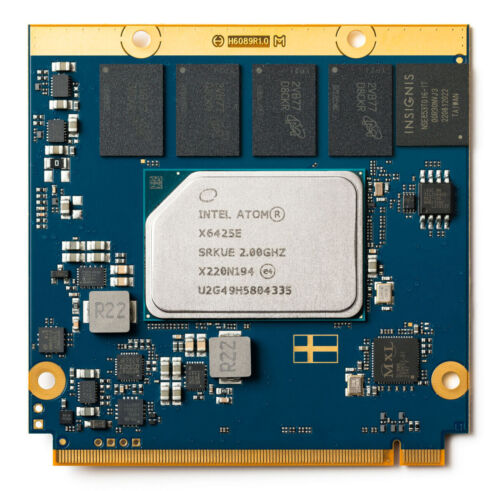

H6089

– Intel® Atom® processors (Elkhart Lake)
– Soldered LPDDR4x RAM memory
– 11th generation Intel® UHD Graphica Engine
– Q7 specification 2.1
– Industrial temperature

Read more

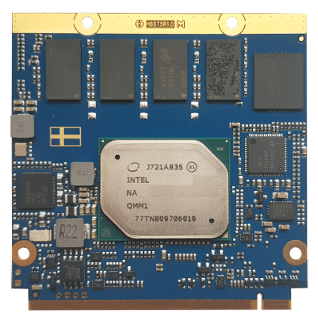

hectronich6075, qseven

Hectronic H6075

– Intel® Atom® processors (Apollo Lake)
– Up to 8GB RAM (soldered DDR3L)
– 9th Generation of Intel HD Graphics
– Q7 specification 2.1
– Standard or Industrial temperature

Read more

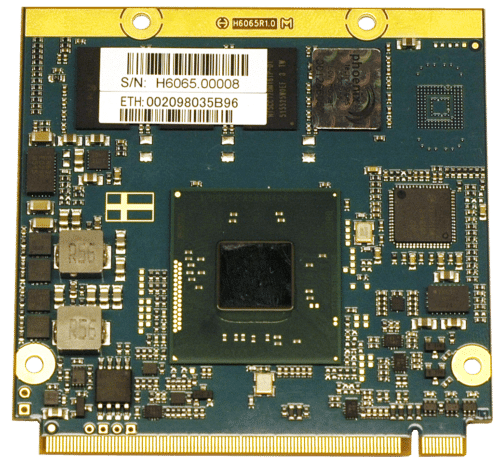

H6065, qseven

Hectronic H6065

– Intel® Atom® E processors (Bay Trail)
– Up to 4GB RAM (Soldered DDR3)
– Q7 specification 2.0
– Standard or Industrial temperature

Read more

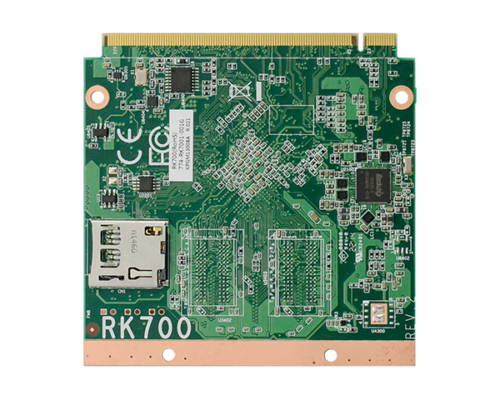

RK700 (F230427)_w600

RK700

– Rockship processors
– Up to 8GB DDR4 Memory down
– 4K High Resolution
– Multiple Expansions

Read more

qseven, embedded systems, embedded solution, embedded computer

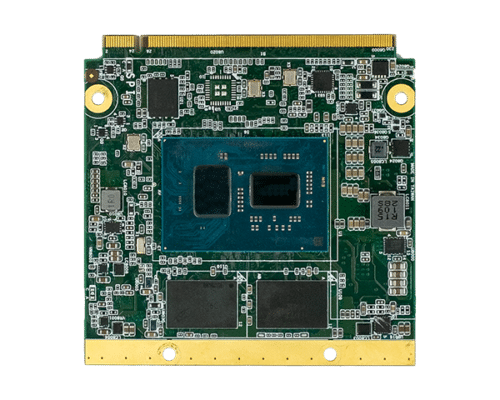

EHL700

– Intel® Atom® processors
– 4GB/8GB LPDDR4 Single Channel Memory Down
– 1 DDI*, 1 LVDS*/eDP
– Rich I/O: 1 Intel GbE, 3 USB 3.1, 8 USB 2.0

Read more

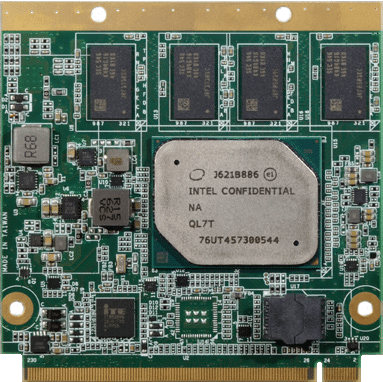

AL700, qseven

AL700

– Intel® Atom® processors (Apollo Lake)
– Up to 8GB RAM (soldered DDR3L 1600MHz)
– Q7 specification 2.1
– Standard or Industrial temperature

Read more

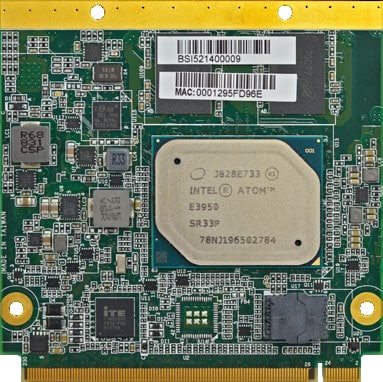

AL701, qseven

AL701

– Intel® Atom® processors (Apollo Lake)
– Up to 8GB RAM (soldered LPDDR4 3200MHz)
– Q7 specification 2.1
– Standard or Industrial temperature

Read more

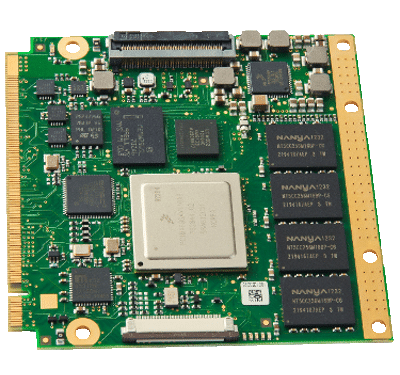

Q7IMX6, qseven

Q7-IMX6

– NXP i.MX6 ARM® Cortex™-A9 series CPU
– Up to 4GB RAM (soldered LVDDR3)
– Q7 specification 1.2 and 2.0
– Standard or Industrial temperature

Read more

Q7M100, qseven

Q7M100

– NXP i.MX28 ARM® PMU Arm9™ Core CPU
– Up to 128MB RAM (Soldered DDR2)
– Q7 specification 1.2
– Industrial temperature

Read more

Q7M120, qseven

Q7M120

– NXP i.MX6 ARM® Cortex™-A9 series CPU
– Up to 1GB RAM (Soldered DDR3)
– Q7 specification 2.0
– Industrial temperature

Read more

Q7M310, qseven

Q7M310

– Intel® Atom® X processors (Apollo Lake)
– 4 or 8GB RAM (Soldered DDR3L)
– Q7 specification 2.0
– Extended or Industrial temperature

Read more

Q7M311, qseven

Q7M311

– Intel® Celeron® & Pentium® N processors (Apollo Lake)
– 4 or 8GB RAM (Soldered DDR3L)
– Q7 specification 2.0
– Extended temperature

Read more

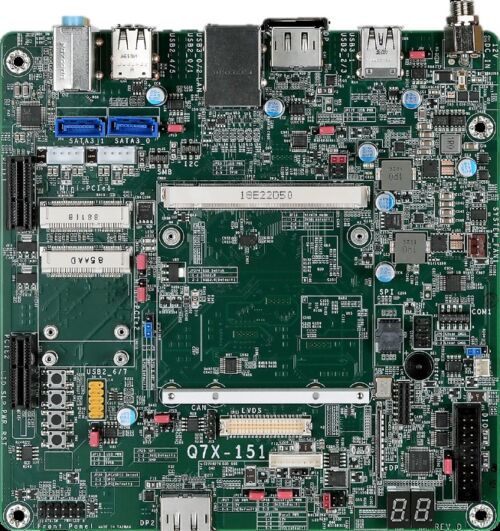

Q7X-151

H4103 Carrier Board

– Expansion: 2 PCIe x1, 2 Mini PCIe, 1 SDIO
– Display outputs: 2 DP, 1 LVCS, 1 eDP
– USB: 3 USB 3.0, 8 USB 2.0
– Storage: 2 SATA 3.0

Read more
