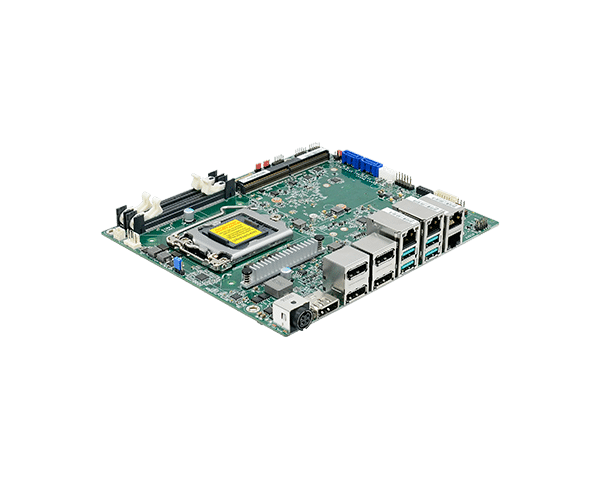

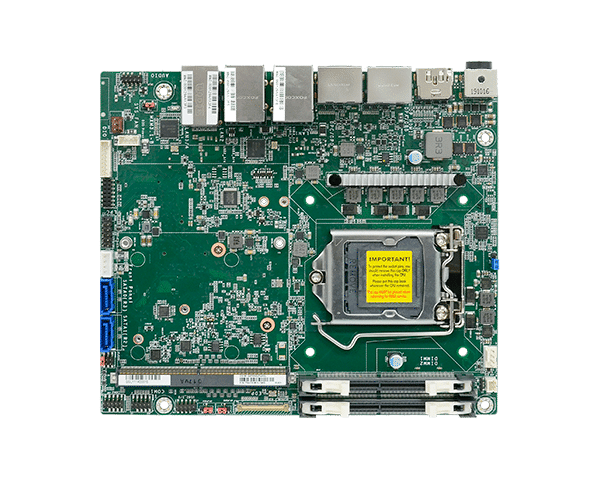

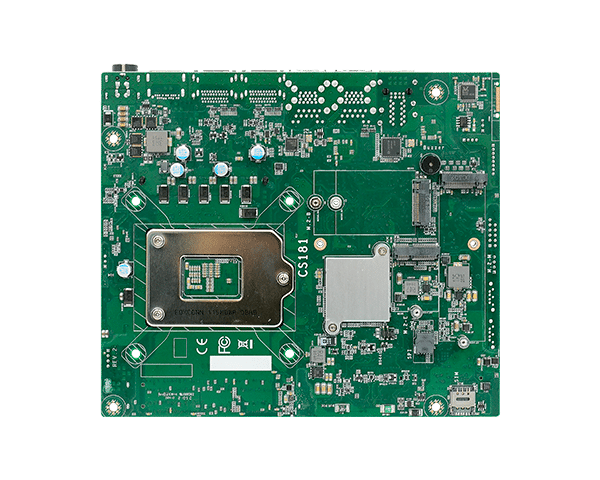

CS181-H310

11 Gen Intel® CoreTM Mini-ITX

mini-itx, embedded systems, embedded solution, embedded computer
mini-itx, embedded systems, embedded solution, embedded computer
mini-itx, embedded systems, embedded solution, embedded computer
mini-itx, embedded systems, embedded solution, embedded computer

Deep Learning with MXM & 5G

CS181 is an industrial Mini-ITX motherboard tailored to infuse Deep Learning into smart edge computing. It is designed for edge devices to transfer and receive data in respond to the dynamics at the edge. The closer and smarter the synergy between edge devices is, the smarter the edge computing system will perform.

Specification

  • 8th/9th Generation Intel® Core™ Processors
  • 2 DDR4 2400/2666MHz SODIMM up to 64GB
  • Multiple Displays: 1 eDP, 1 DP++/HDMI (autodetection), 4 DP
  • Supports up to 4K/2K resolution
  • Multiple Expansions: 1 MXM Type-A/B/B+/C, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
  • Storage: 2 SATA 3.0

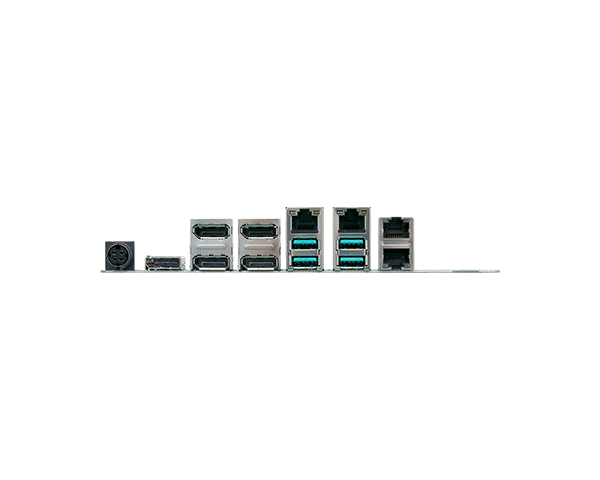

  • Rich I/O: 4 Intel GbE, 2 COM, 4 USB 3.2 Gen1, 2 USB 2.0
