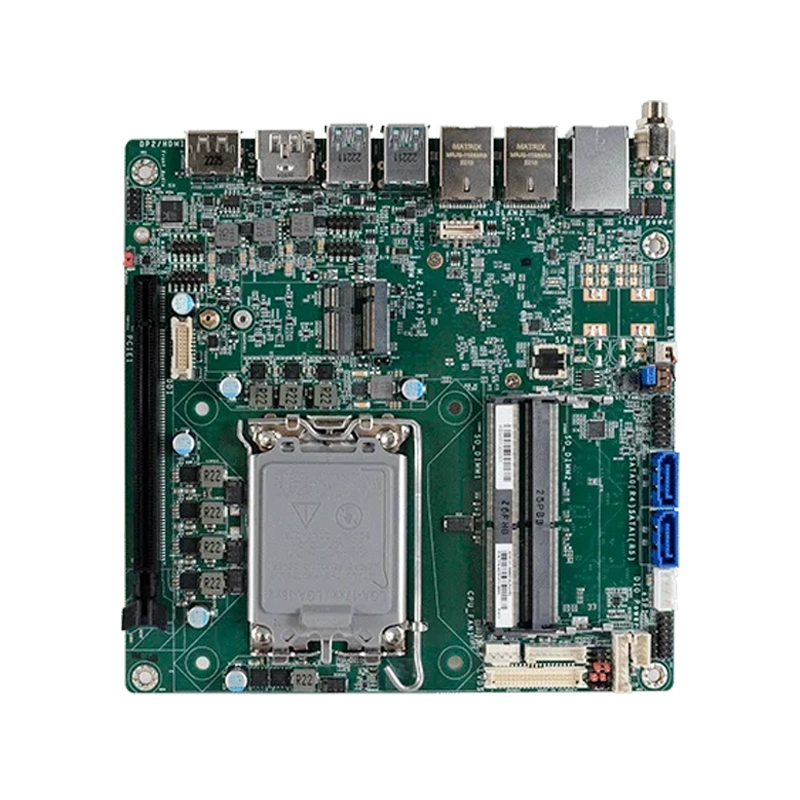

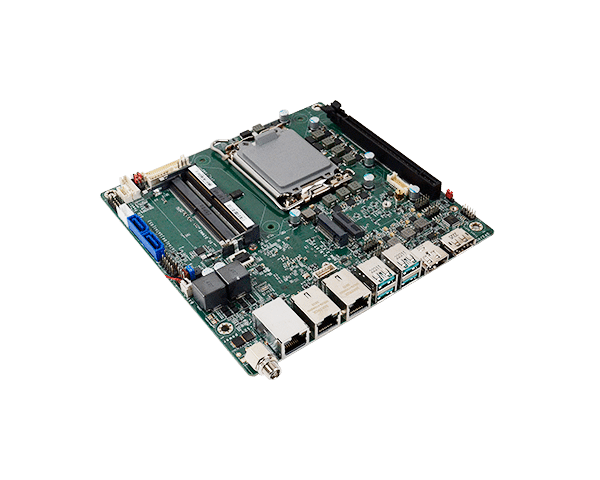

ADS101/ADS103

12th Gen Intel® CoreTM Thin Mini-ITX

mini-itx, embedded systems, embedded solution, embedded computer
mini-itx, embedded systems, embedded solution, embedded computer
mini-itx, embedded systems, embedded solution, embedded computer
mini-itx, embedded systems, embedded solution, embedded computer

Intelligent Workload Optimization

ADS101/ADS103 is a hybrid architecture of Performance Cores and Efficiency Cores (P-Core and E-Core). It’s design to improve the workload efficiency of visual computing. ADS101/ADS103 also has a 50% improvement in computing performance. Aiming to accomplish more complex computing, ADS101/ADS103 is ideal for machine vision and heavy workloads that needs tom be handled faster and more precisely.

Specification

  • 12th Generation Intel® Core™ Processors
  • 2 DDR4 3200MHz SODIMM up to 64GB
  • Quad Displays: 1 DP++, 1 DP++/HDMI, 1 LVDS/eDP, 1 DFI display extension port (DP/HDMI/VGA available)
  • Supports up to 4K/2K resolution
  • Multiple expansion: 1 PCIe x16, 1 M.2 E Key (USB/PCIe), 1 M.2 M Key (PCIe/SATA), 1 M.2 B Key (PCIe/SATA/USB)

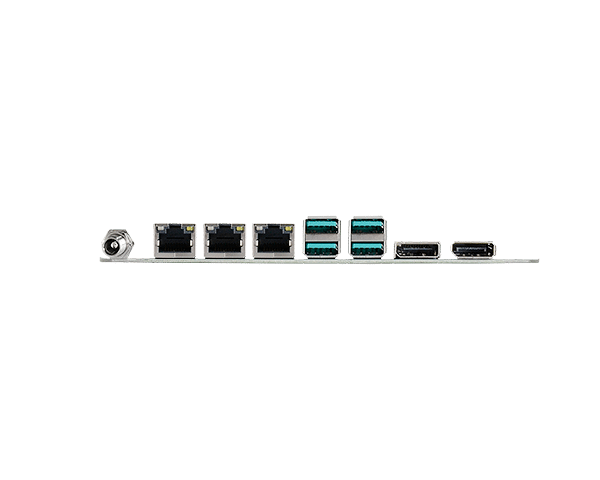

  • Rich I/O: 1 Intel 2.5GbE, up to 2 Intel GbE, 2 COM, up to 6 USB 3.2 Gen2, 2 USB 3.2 Gen1, 4 USB 2.0, 2 SATA 3.0
