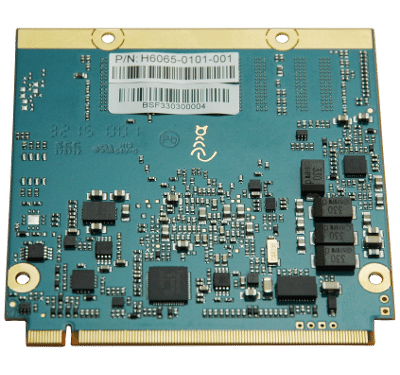

Hectronic H6065

COM module based on the Intel® Atom™ Baytrail SOC with 7th generation Intel® HD Graphics along with a single, dual or quad core CPU and I/O controller.

fd06893f0f3d9289955ef8de9260f24e
00e6177efdcfdaf0c50ad48d01ec53f0

The Qseven form factor makes H6065 a legacy free module with a full range of contemporary low voltage differential serial interfaces such as PCI Express, USB 3.0 and display interfaces such as DisplayPort, HDMI, DVI and Dual 24-bit LVDS. Qseven modules are defined for low cost and ruggedness, with an MXM type edgecard connector interfacing the carrier board. H6065 has soldered memory and optional on-board eMMC Flash. The H6065 is available in both standard and industrial grade operating temperature.

Specification

  • Intel Atom E3800 series
  • Q7 specification 2.0
  • Industrial temp. (optional)
  • Intel HD Graphics Gen. 7

Documentation

industrial

Industrial temperature range
-40°C to 85°C

f36350356772ee4a80179323c23d4cd6

Intel® Internet of Things Solutions Alliance
Hectronic is an Affiliate member of the Intel® Internet of Things Solutions Alliance, a global ecosystem of 250+ member companies that provide scalable, interoperable solutions that accelerate deployment of intelligent devices and end-to-end analytics.
