ECM-APL

4th Generation Intel® Xeon® / Intel® CoreTM / Celeron®
Modular-Designed Embedded System

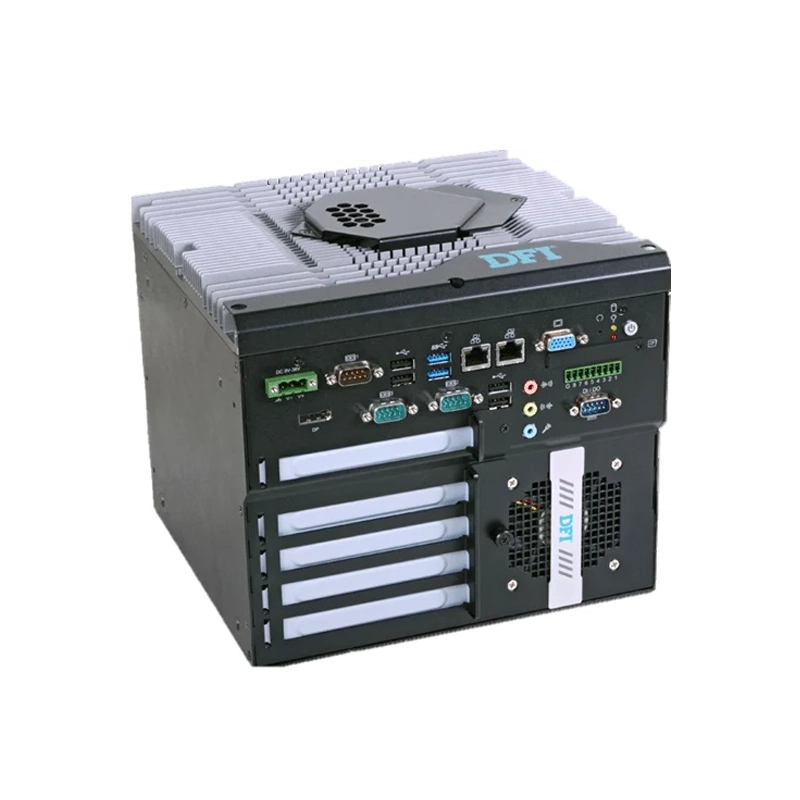

EC553-DL

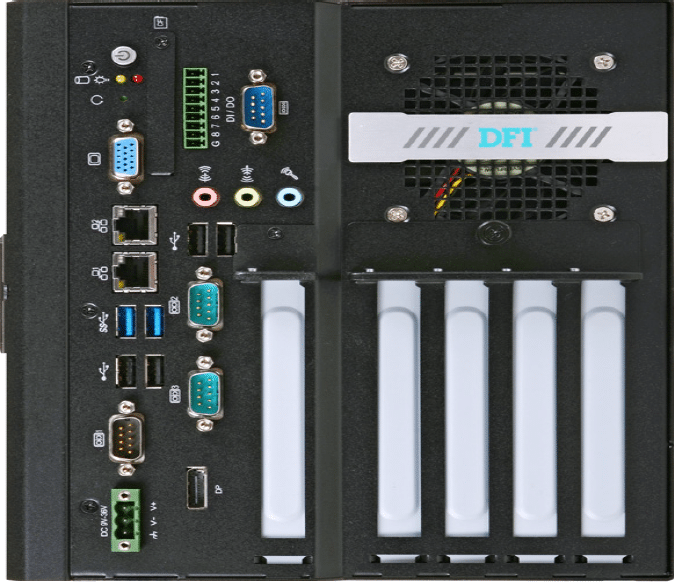

EC553-DL front

Specifications

  • CPU: Intel® Xeon® E3-1268L v3 (8M Cache, up to 3.3 GHz); 45W
  • Intel® CoreTM i7-4770S (8M Cache, up to 3.9 GHz); 65W

Intel® CoreTM i7-4770TE (8M Cache, up to 3.3 GHz); 45W
Intel® CoreTM i5-4570S (6M Cache, up to 3.6 GHz); 65W
Intel® CoreTM i5-4570TE (4M Cache, up to 3.3 GHz); 35W
Intel® CoreTM i3-4360 (4M Cache, 3.7 GHz); 54W
Intel® CoreTM i3-4340TE (4M Cache, 2.6 GHz); 35W
Intel® CoreTM i3-4330 (4M Cache, 3.5 GHz); 54W
Intel® CoreTM i3-4330TE (4M Cache, 2.4 GHz); 35W
Intel® Pentium® G3420 (3M Cache, 3.2 GHz); 53W
Intel® Pentium® G3320TE (3M Cache, 2.3 GHz); 35W
Intel® Celeron® G1820 (2M Cache, 2.7 GHz); 53W
Intel® Celeron® G1820TE (2M Cache, 2.2 GHz); 35W
• Chipset: Intel C226 Express
• RAM: 16GB (2 x 204-Pin DDR3 1333/1600MHz SO-DIMM)
• Storage: 2x SATA
• USB: 4x 2.0, 2x 3.0
• COM: 4x RS-232/422/485
• LAN: 2x GbE
• IO: 8x DIO
• Display: 1x VGA, 1x DP
• Audio: 1x Line in, 1x Line out, 1x Mic in
• Expansion: 1x Mini PCIe
• Power supply: 9 – 36 VDC
• Operating temp: 0 to 50°C
• Storage temp: -20 to 85°C
• Certification/approval: CE, FCC Class A, RoHS

  • High performance and flexibility
  • Supports DDR3 SODIMM up to 16GB
  • 2x 2.5" SATA drive bays
  • 5 expansion slots
