Product listing

TGU9A2

11th Generation Intel® Processor COM Express® Mini
Single Channel LPDDR4X 4266MHz；Memory Down up to 16GB
Multiple expansions: 1 PCIe x4, 2 I2C, 1 SMBus
Rich I/O: 1 Intel GbE, 2 USB 3.2, 8 USB 2.0

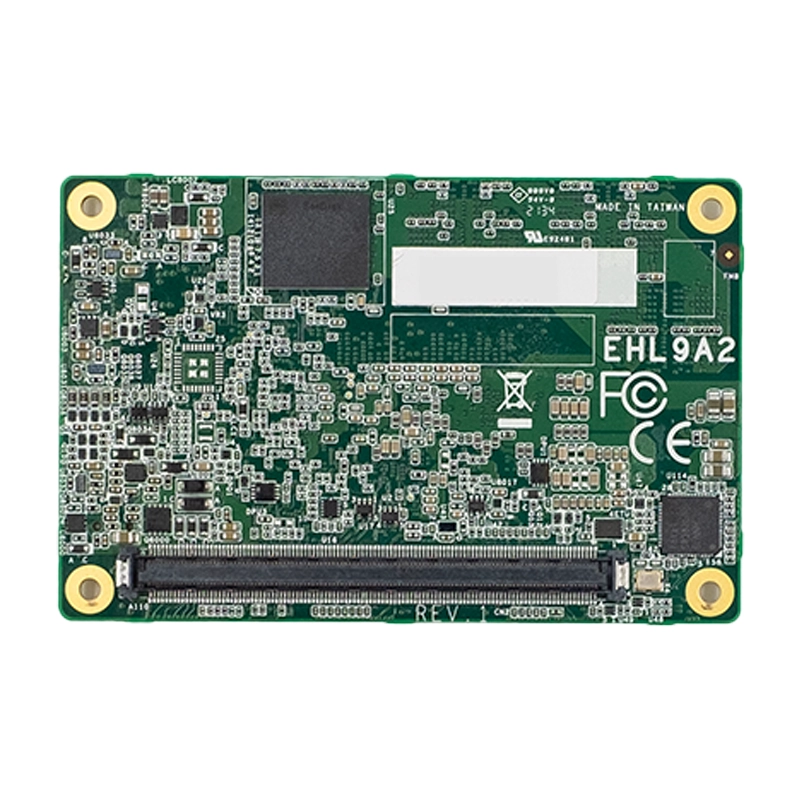

EHL9A2

Intel® Atom® processors (Elkhart Lake)
Dual Channel LPDDR4X 3200MHz/4267MHz up to 16GB
Multiple expansions: 4 PCIe x1
Rich I/O: 1 Intel GbE, 4 USB 3.1, 8 USB 2.0

CEM320

Intel Atom® x6000E/RE series or Intel® Celeron® N/J processor (Elkhart Lake)
8GB/16GB LPDDR4 onboard memory, up to 3200 MT/s
Up to 4 PCIe Gen 3 lanes
2 SATA 3.0
2 USB 3.2 Gen 2 and 8 USB 2.0
eMMC 5.1 and TPM 2.0 onboard

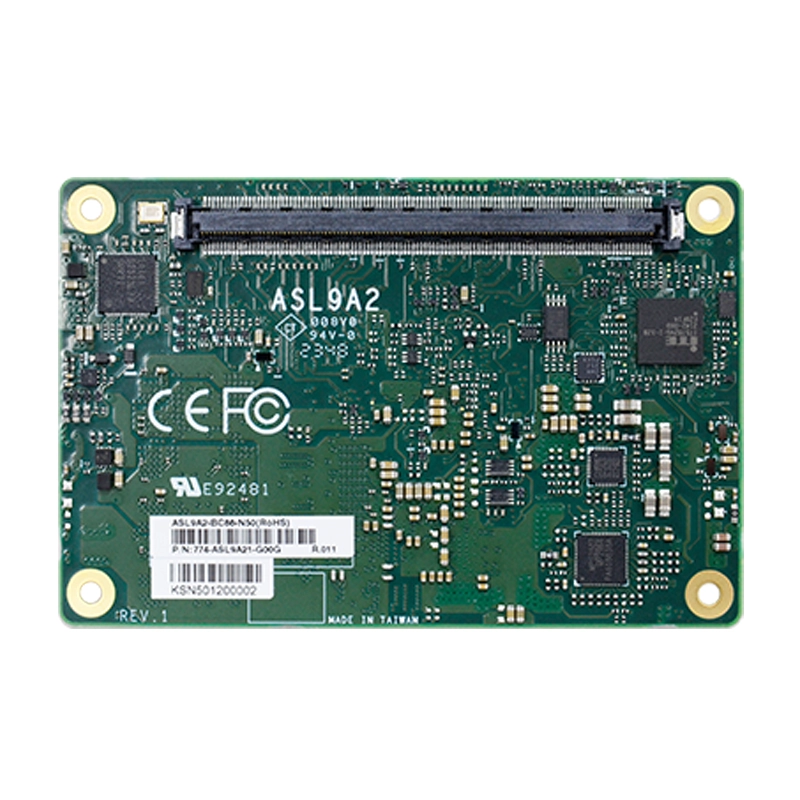

ASL9A2

Intel® Atom® Processor Amston Lake Series
Dual Channel LPDDR5 4800MHz up to 16GB
1 LVDS/eDP, 1 DDI (HDMI/DP++)；Supports dual displays: DDI + LVDS/eDP
Multiple expansions: 4 PCIe x1, 1 SMBus, 1 I2C, 1 eMMC
Rich I/O: 2 USB 3.1, 8 USB 2.0
High Speed Ethernet: Supports 100M/1000M/2.5Gbps

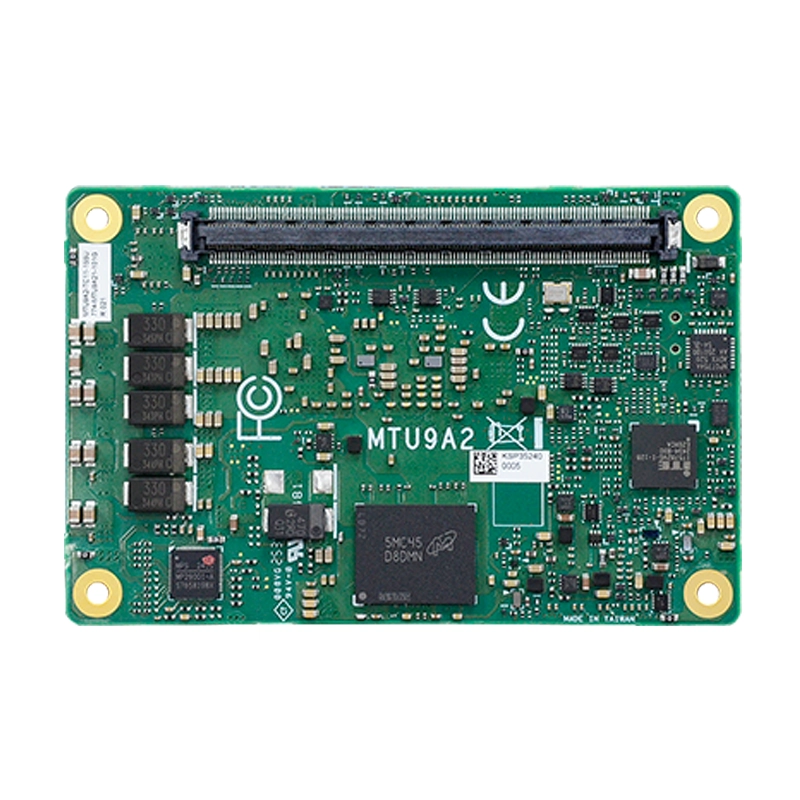

MTU9A2

Intel® Core™ Ultra Processor (Meteor Lake: U-series)
Single Channel LPDDR5 7467MHz up to 32GB
Dual Displays: 1 DDI + 1 eDP
Supports 4K / 2K resolution
Multiple Expansion: 4 PCIe x1, 1 I2C, 1 SMBus, 1 eSPI, 2 UART
Rich I/O: 1 Intel 2.5GbE, 2 USB 3.2, 8 USB 2.0, 2 SATA 3.0
32 TOPS of Hybrid AI compute

ADN9A2

Intel® Atom® Processor Alder Lake-N Series
Dual Channel LPDDR5 4800MHz up to 16GB
1 LVDS/eDP, 1 DDI (HDMI/DP++)；Supports dual displays: DDI + LVDS/eDP
Multiple expansions: 4 PCIe x1, 1 SMBus, 1 I2C, 1 eMMC
Rich I/O: 2 USB 3.2, 8 USB 2.0
High Speed Ethernet: Supports 100M/1000M/2.5Gbps
