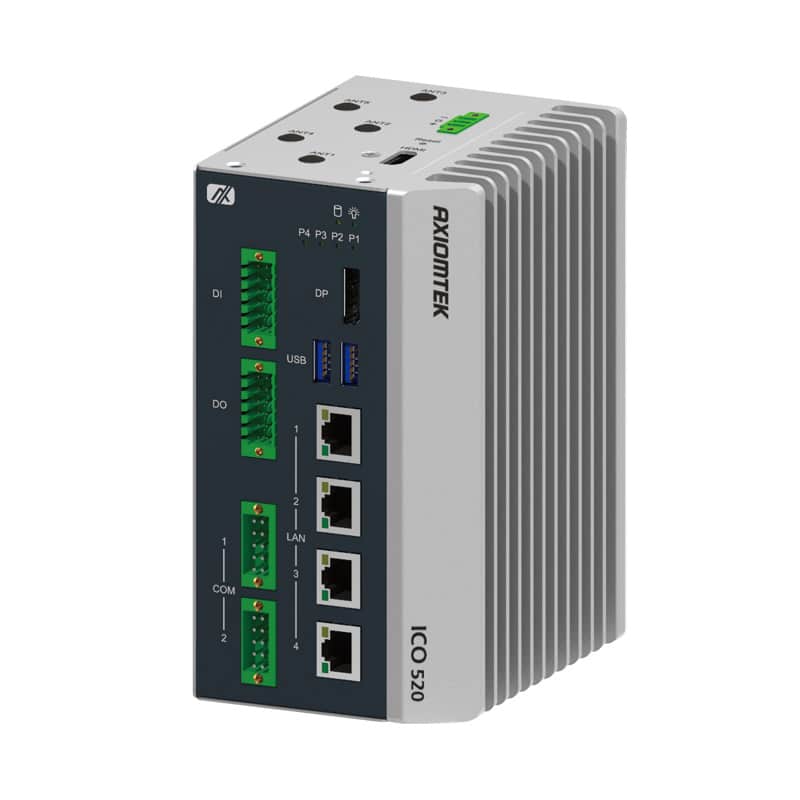

DIN-rail Fanless Embedded System with Intel® Core™ i7/i5/i3/Celeron® Processor
Rugged and high-performing
ICO520 is powered by the low-power consuming Intel® Atom™ x5-E3930 processor. It is certified with CE and FCC and follows ISO 7637-2. ICO520 is equipped with Smart Ignition power control, a feature that can arrange a power on/off schedule to protect the battery from unstable voltage. it can operate in a temperature range from -40°C to +70°C and vibration of up to 3 Grms.
Specification
- High performance with fanless & DIN-rail design
- 12th gen Intel® Core™ i7/i5/i3 or Celeron® processor (Alder Lake-P)
- 4 isolated COM, isolated DIO (8-in/8-out), 4 2.5 GbE LAN
- Wide operating temperature range from -40°C to +70°C
- 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
- Supports TPM 2.0
- Supports cold boot at -40°C
