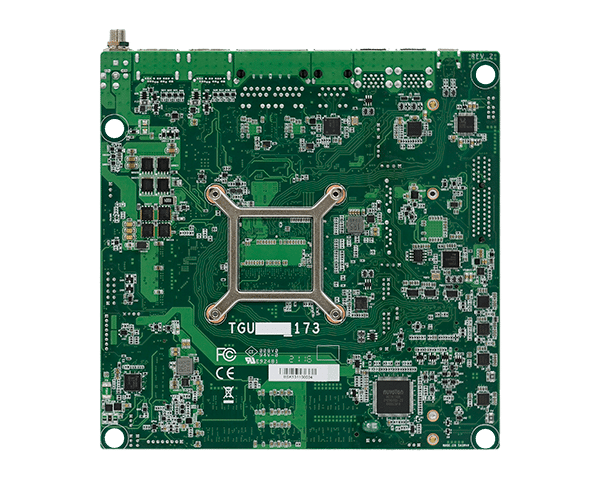

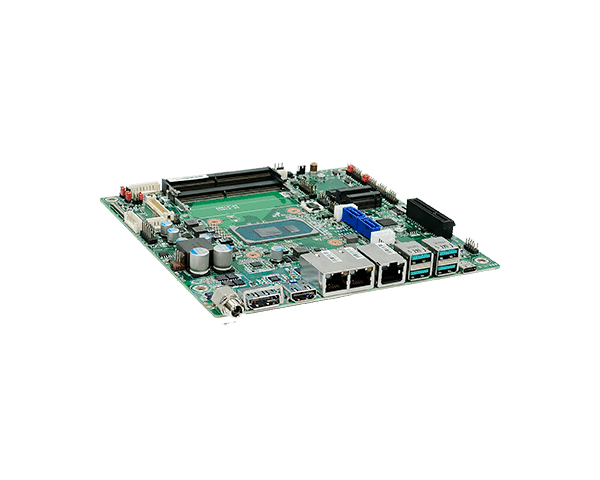

TGU171/TGU173

11 Gen Intel® CoreTM Mini-ITX

mini-itx, embedded systems, embedded solution, embedded computer
mini-itx, embedded systems, embedded solution, embedded computer
mini-itx, embedded systems, embedded solution, embedded computer
mini-itx, embedded systems, embedded solution, embedded computer

Edge AI vision and complex computing

TGU171/TGU173 is powered by 11th generation Intel® Core™ SoC processors designed for Edge AI vision computing. In the all-new Intel® Iris® Xe architecture, the high-performance, low-power SoC integrates with the GPU and CPU, and is combined with AI acceleration to make a big progress in the edge AI computing performance and handle complex computing applications, such as computer vision or high workloads, faster and more accurate.

Specification

  • 11th Gen Intel® Core™ Processors
  • DDR4 3200MHz SODIMM up to 64GB
  • Quad independent displays: 1 LVDS, 1 eDP, 1 DP++/HDMI (Auto-detecting), 1 USB Type C
  • Supports up to 4K/2K resolution
  • Multiple expansion: 1 PCIe x4, 1 M.2 M Key, 1 M.2 B key (SATA/PCIe), 1 M.2 E key (PCIe/USB), 1 Nano-SIM Socket
  • Storage: 2 SATA 3.0

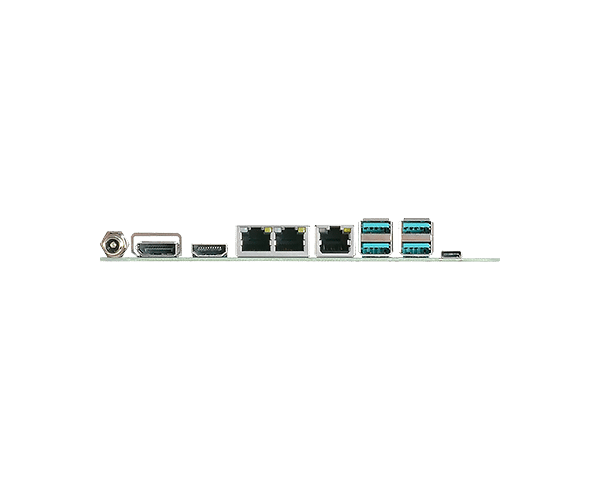

  • Rich I/O: 1 Intel 2.5GLAN, 2 Intel GbE, 4 COM, 4 USB 3.1 Gen2, 1 USB Type-C, 4 USB 2.0
