8th Gen Intel® CoreTM Processor
COM Express® Compact

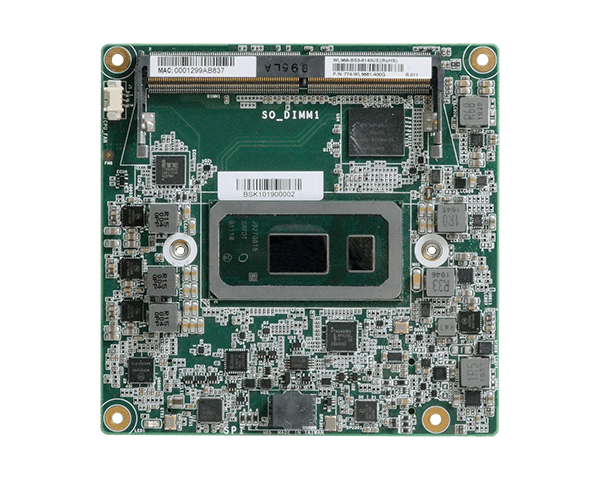

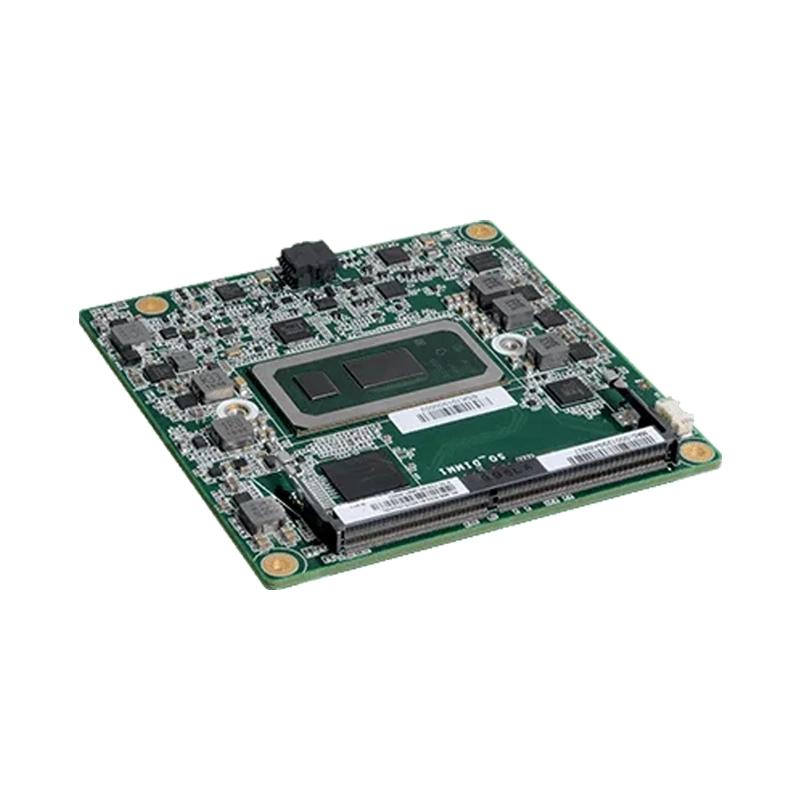

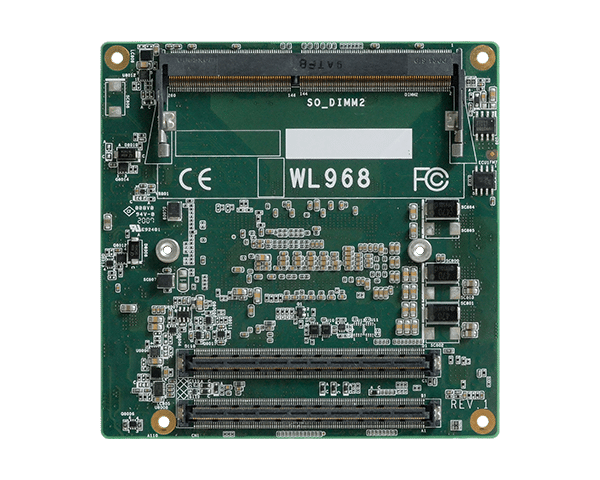

WL968 – Power efficiency
WL968 is based on 8th Gen Intel® Core™ processors, also known as Whiskey Lake-U, with 40% power saving and is more durable than the previous generation. WL968 is ideal for energy efficient applications.
Specifications
- 8th Generation Intel® Core™ Processor COM Express® Compact
- DDR4 2400/2133MHz SODIMM up to 64GB
- Triple Displays: VGA/DDI + LVDS/eDP + DDI
- DP++ supports 4K x 2K resolution
- Multiple expansion: 4 or 5 PCIe x1 + 1 PCIe x4 or 3 PCIe x1 + 2 PCIe x2, 1 LPC, 1 I²C, 1 SMBus, 2 UART
- Rich I/O: 1 Intel GbE, 4 USB 3.1 Gen2, 8 USB 2.0, 3 SATA 3.0
