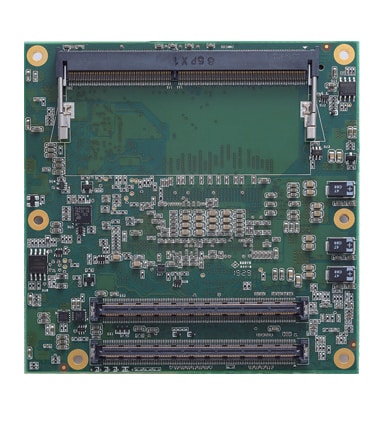

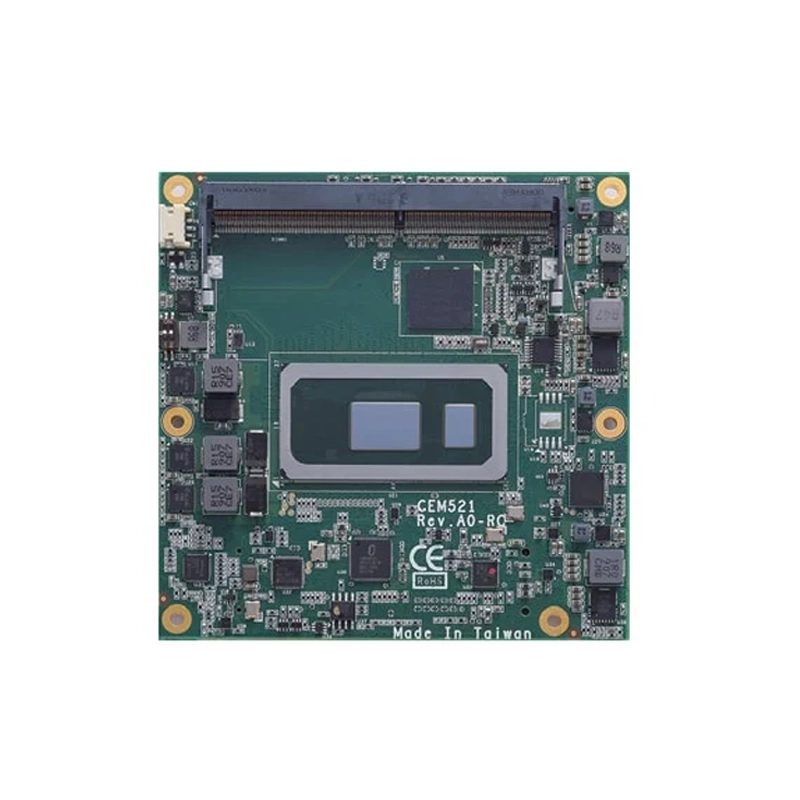

COM Express Type 6 Compact Module with 8th Gen Intel® Core™ & Celeron® Processor
The CEM521 is powered by the latest 8th generation Intel® Core™ i7/i5/i3 processor or Intel® Celeron® processor 4305UE (codename: Whiskey Lake-U).
It is suitable for harsh operating conditions with an extended operating temperature range of -40°C to +85°C (-40°F to +185°F). The 4K-ready system on module was designed for graphics-intensive Industrial IoT applications including industrial control system, medical imaging, digital signage, gaming machines, military, and networking.
Specifications
- 8th gen Intel® Core™ i7/i5/i3 and Celeron® processors (Whiskey Lake-U)
- 2 DDR4-2400 SO-DIMM for up to 64GB of memory
- 3 SATA-600
- 4 USB 3.0 and 8 USB 2.0
- TPM 2.0 supported
- AMS.AXView intelligent remote management software
