Nyckelfunktioner
- Hög upplösning
- Hög aperturförhållande
- System på glas
- Låg energiförbrukning
- Högre ljusstyrka med mindre värme

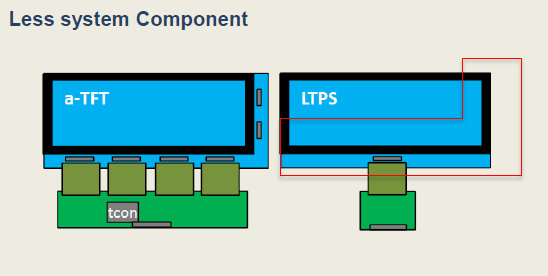

A low temperature poly-silicon (LTPS) TFT LCD, prepared by forming polycrystalline silicon on a glass substrate at relatively low temperatures, achieved high carrier mobility in TFT. Therefore, LTPS TFT LCD realizes a high resolution and high density display that cannot be achieved with A-si by integrating part of the display drive circuitry on the glass substrate. Other features are also higher brightness with less power consumption and heat from backlight. JDI has developed LTPS displays, and has introduced one of the world’s highest density display prototypes. Among all of their LTPS-TFT’s they offer a 7.0” with full-HD resolution and a 13.3” wide TFT w 4k-resolution also called UHD (3840x2160dot).
Produktlista
TX18D204VM0BAA
- Technology – IPS TFT
- Mode – Transmissive
- Dimensions – 178.8 x 115 x 5.5
- Backlight – 40Khrs LED
- Features – LTPS, IPS
Data sheet –
TX18D211VM0BAA
- Technology – IPS TFT
- Mode – Transmissive
- Dimensions – 167.7 x 109.5 x 9
- Backlight – 50Khrs LED
- Features – LTPS, IPS, Rugged+
Data sheet – TX18D211VM0BAA
TX20D207VM0AAA
- Technology – IPS TFT
- Mode – Transmissive
- Dimensions – 167.7 x 109.5 x 9
- Backlight – 50Khrs LED
- Features – LTPS, IPS, Rugged+, LVDS interface
Data sheet – TX20D207VM0AAA
TX20D207VM0AAA
- Technology – IPS TFT
- Mode – Transmissive
- Dimensions – 189.5 x 119.4 x 11.6
- Backlight – 70Khrs LED
- Features – LTPS, IPS, Rugged+
Data sheet – TX20D207VM0AAA
TX26D208VM0AAA
- Technology – IPS TFT
- Mode – Transmissive
- Dimensions – 241.9 x 147.8 x 12.6
- Backlight – 70Khrs LED
- Features – IPS, LTPS
Data sheet – TX26D208VM0AAA
