IPC962-511-FL

2-slot Fanless Industrial System with LGA1151 Socket 7th/6th Gen Intel® Core™ i7/i5/i3 &
Celeron® Processor, Intel® H110, Front-access I/O, PCIe and PCI Slots

IPC962-511-FL
IPC962-511-FL 2

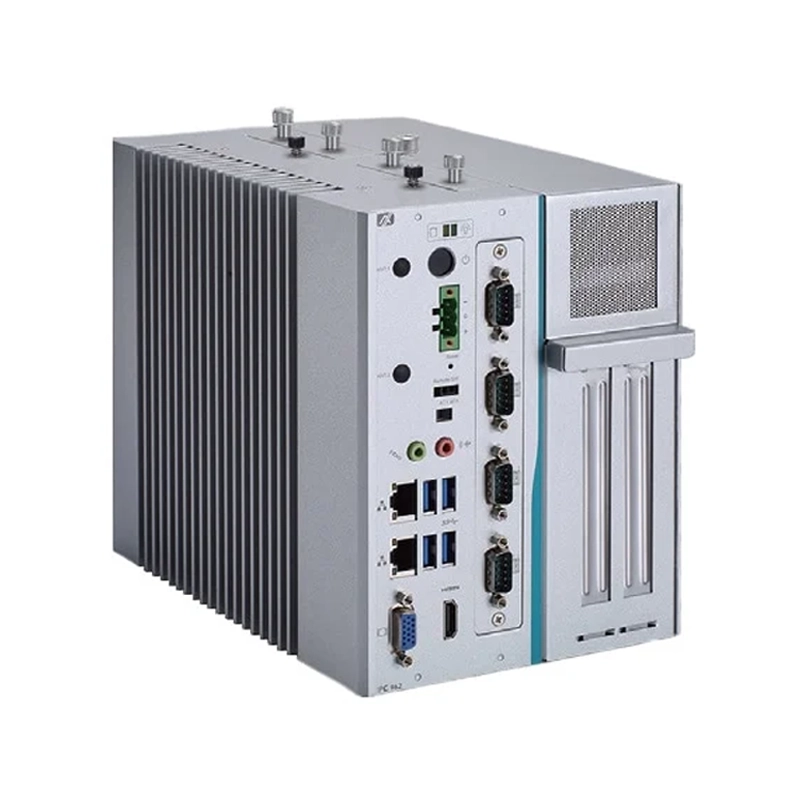

The IPC962-511-FL is powered by the 7th/6th generation Intel® Core™ and Celeron® processors (codename: Kaby Lake/Skylake) up to 35 W with the Intel® H110 chipset, featuring high performance capability. The ultra-compact industrial computer provides flexible expansion options with one I/O module slot and two PCI/PCIe expansion slots.

It has a wide operating temperature range of -10°C to +60°C, and is equipped with a wide range 19V – 30V DC power input for mission-critical environments. The ruggedized industrial PC has a creative modular design with rugged mechanisms and optimized expandability.



Specification

  • LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor, up to 65W (codename: Kaby Lake/Skylake)
  • Intel® H110 chipset
  • Supports 2 expansion slots
  • Power input: 24 VDC (uMin=19V/uMax=30V)
  • Compact & front I/O design
  • -10°C to +60°C operating temperature range
  • Supports 2 swappable 2.5" HDD
  • Supports ECM BIOS setting
  • Supports WLAN module & antenna (optional)
  • Supports TPM 2.0
