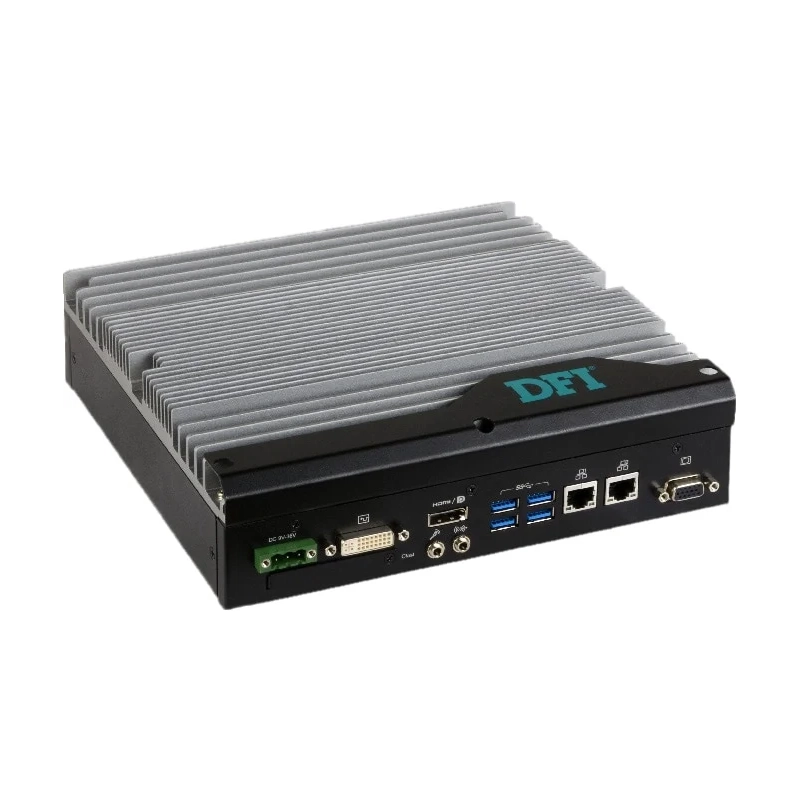

EC500-SD

6th/7th Gen Intel® CoreTM Processor
Modular-Designed Embedded System

EC500-SD series with 6th Generation Intel® Core™-i processors and Intel® Q170 chipset offers high computing performance and stunning video processing. With rich industrial I/O interfaces and PCI/ PCIe expansion slots, EC500-SD series is a perfect candidate for machine automation, AOI system, ITS, surveillance, and other high-end smart applications.

Specification

Supports DDR4 SODIMM up to 32GB
Three independent displays: 1 VGA + 1 DVI/HDMI + 1 HDMI/DP
Compact and cost-effective solution

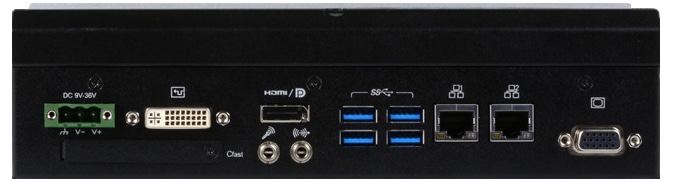

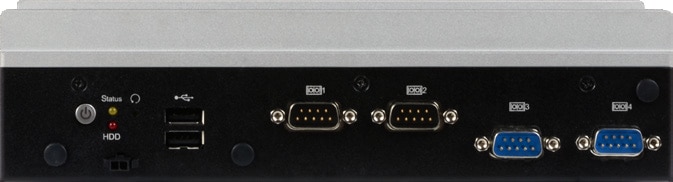

Rich I/O connectivity: 2 GbE, 4 COM, 4 USB 3.0, 2 USB 2.0
2 Mini PCIe slots support mSATA and Wi-Fi modules

Documentation

EC500-SD
