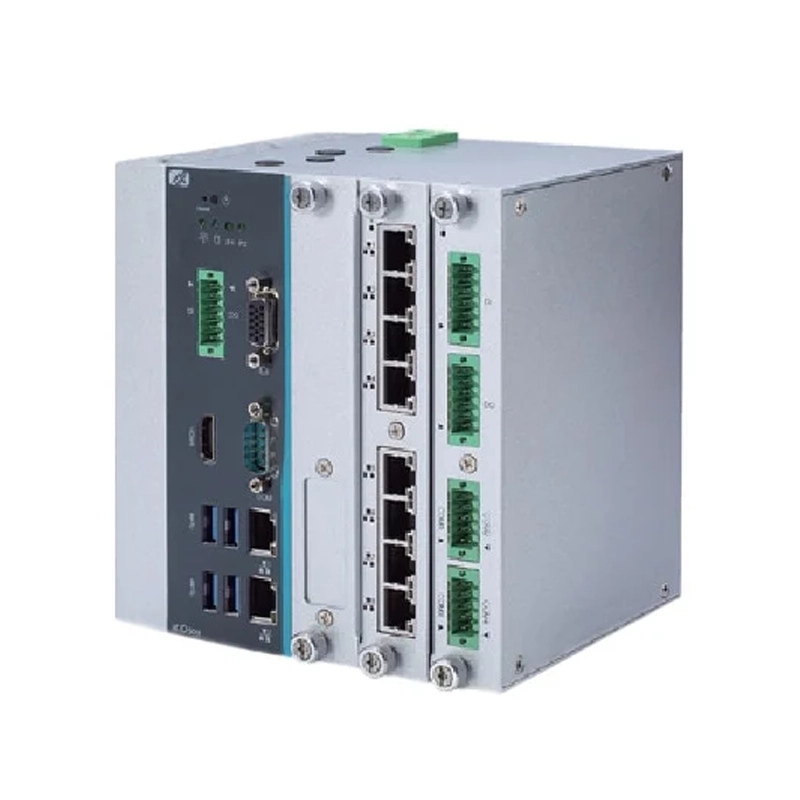

Fanless Embedded System with 7th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, and
Dual Modular I/O Expansion Design
Fanless Embedded System with 7th Gen Intel® Core™ i7/i5/i3 & Celeron® Processors, Dual Modular I/O Expansion Design.
The ICO500-518 featuring flexible I/O expansion, sufficient storage and network capability is well-suited for transportation, public utility, smart building, solar energy, as well as factory automation fields.
Specification
- 7th gen Intel® Core™ i7/i5/i3 & Celeron® processors (Kaby Lake-U)
- 2 PIM (Plug-in I/O Module) slots

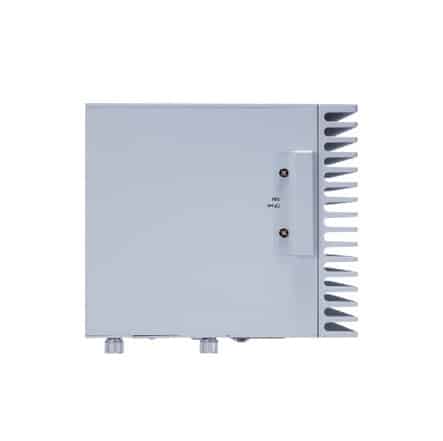

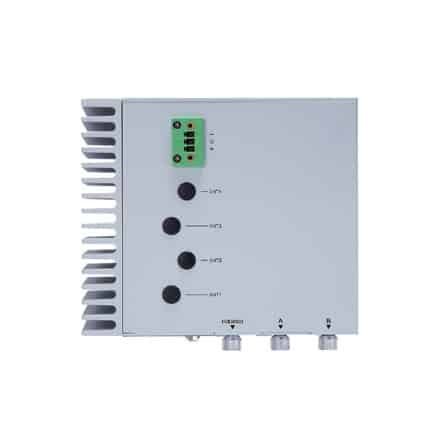

- Fanless and compact design
- Wide operating temperature range from -40°C to +70°C
- 12 to 48 VDC wide range power input
- OVP, UVP, OCP, RPP power protection design
- 1 swappable 2.5″ SATA drive tray
