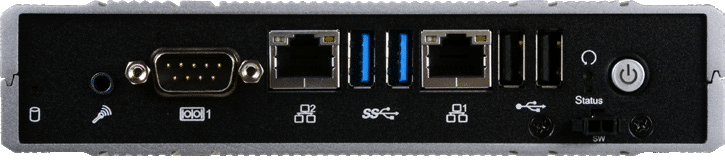

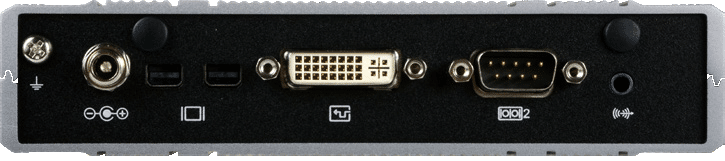

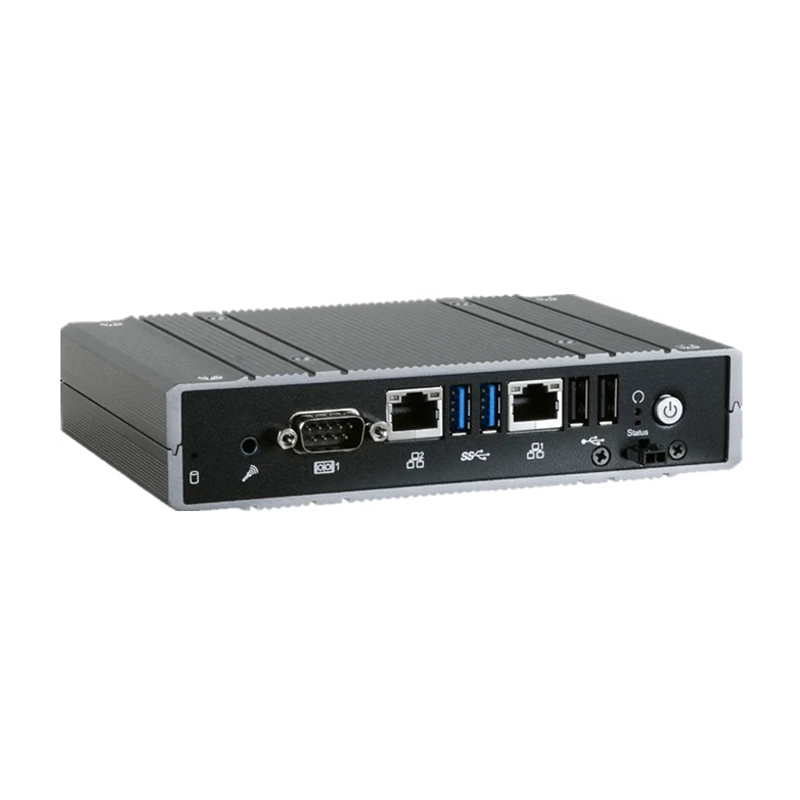

Intel Atom® Processor E3900 Series Fanless Embedded System.
EC800-AL is a fanless embedded system comes with Intel Atom® processor E3900, which is equipped with extensive I/O capabilities in an ultra compact size. To ensure efficient data transition, the system supports a Mini PCIe slot and 2 M.2 slots for wireless connectivity and storage. As for product reliability and availability, the system operates against environmental factors with anti-dust and anti-vibration design.
Specifications
- Palm-sized and Fanless Embedded System
- 2GB/4GB/8GB LPDDR4-2400 memory onboard
- Triple independent displays: 1 VGA/DVI-D + 2 DP/HDMI
- Supports 1 Mini PCIe and 2 M.2 slots
- Rich I/O ports: 2 Intel GbE, 2 COM, 4 USB
- Extended operating temperature: -40 to 70°C
