Hectronic H6075

The H6075 is a compact (70mm x 70mm) high-performance, low power COM module based on the Intel® Atom™ Apollo Lake System-on-Chip, SOC. The SOCs have the 9th generation Intel® HD Graphics Engine GPU built in along with a dual or quad core CPU and I/O controller.

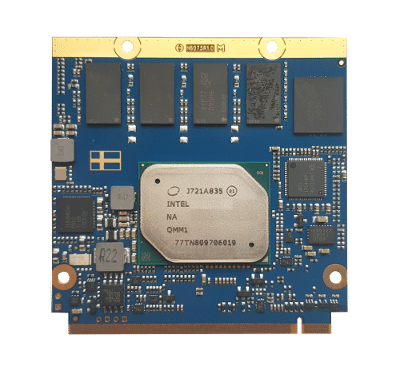

624d261d050abe7a8e0b4cc26b3d95f1

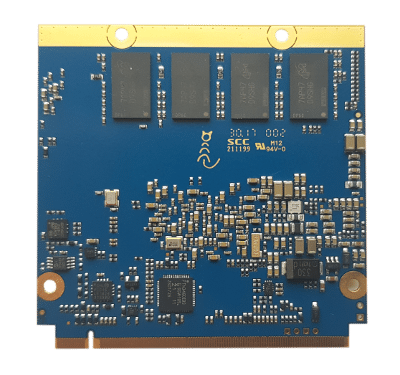

6bb6dc760451182d8130f8056e0413bf

The Qseven form factor makes H6075 a legacy free module with a full range of contemporary low voltage differential serial interfaces such as PCI Express, USB 3.0, SATA 3.0 and display interfaces such as DisplayPort or HDMI and Dual 24-bit LVDS.

Qseven modules are defined for low cost and ruggedness, with an MXM type edgecard connector interfacing the carrier board. H6075 has soldered memory and optional on-board eMMC Flash.

The H6075 is available in both standard and industrial grade operating temperature.

Specification

  • Dual or Quad Core Intel Atom
  • Soldered DDR3L RAM memory
  • 9th Gen Intel HD Graphics
  • Industrial temp. (optional)

Documentation

industrial

Industrial temperature range
-40°C to 85°C
