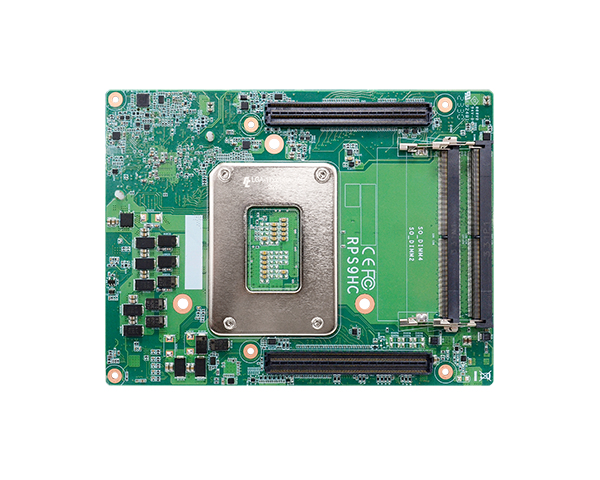

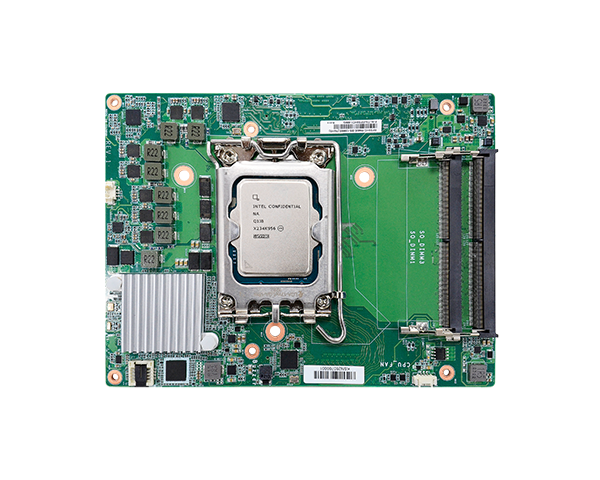

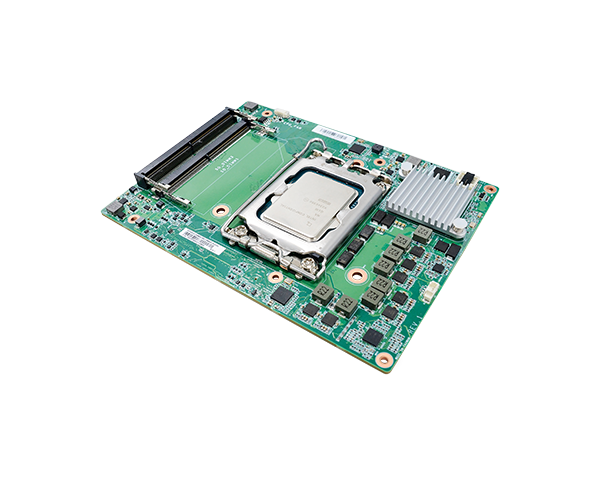

RPS9HC – COM-HPC Client module with Intel® Core™ processors

Specification

• BTL-S/14th/13th Gen Intel® Core™ with Intel® R680E/Q670E/H610E Chipset
• 4 DDR5 SODIMM 3600MHz up to 192GB
• Quad Displays: eDP + 3 DDI
• DDI supports up to 8K
• Multiple Expansion: 1 PCIe x16 (Gen5), 4 PCIe x4 (Gen4), 2 PCIe x4 (Gen3), 2 PCIe x1 (Gen3)
• Rich I/O: 2 Intel 2.5GbE, 6 USB 3.2 Gen2, 8 USB 2.0
• Typically supports 10-Year CPU Life Cycle Until Q1’ 38 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.
