Key features
- Latest IPS NEO technology
- Exceptional colour stability and saturation
- 176° wide viewing angle

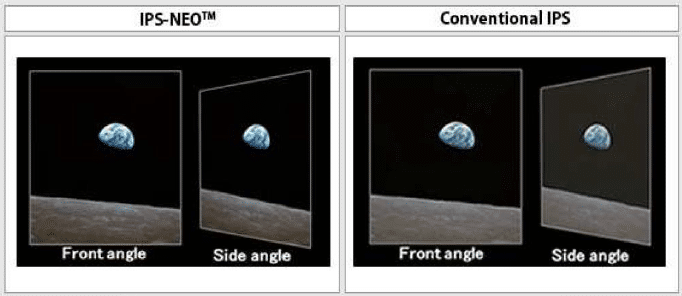

IPS brings much wider view angles compared to TN technology, but generally also backlight bleeding in wider angles. However, this has been further developed and evolved with Advanced-Super IPS, IPS Pro and most recently IPS NEO. IPS NEO has a much higher and more stable image performance over viewing angle than any other TFT technology, minimizing the light leakage and keeping the black colour also in sharp angles. KOE will continue to develop and improve IPS technology in order to provide the best TFT display solutions in the future.
Product Highlight
Introducing the TX40D202VM0BAB, a state-of-the-art 15.6” Full HD display module brought to you by JDI (Japan Display Inc). Designed with the latest advancements in amorphous silicon TFT technology, this display sets new standards in visual performance and energy efficiency. Offering a resolution of 1920 x 1080 pixels within a 16:9 aspect ratio, it delivers vibrant colors, sharp images, and deep blacks thanks to its R G B vertical stripe pixel arrangement and transmissive color TFT with Normally Black mode. Environmental responsibility is at the core of its design, utilizing RoHS compliant COG technology and an LED backlight for reduced power consumption. With its super wide viewing angle, support for up to 16.7 million colors, and low power usage, the TX40D202VM0BAB is an ideal solution for automotive, industrial, and medical applications.
Key Features – TX40D202VM0BAB
• 15.6” FHD Display: Offers a Full HD resolution of 1920 x 1080 pixels in a 16:9 aspect ratio, providing clear and detailed visuals for an immersive viewing experience.
• Amorphous Silicon TFT: Utilizes advanced amorphous silicon TFT technology for high-quality image display, ensuring vibrant colors and sharp images.
• RGB Vertical Stripe Pixel Arrangement: Enhances color accuracy and image clarity with a precise arrangement of red, green, and blue sub-pixels.
• Transmissive Color TFT with Normally Black Mode: Ensures deep blacks and high contrast ratios, making it suitable for a variety of lighting conditions.
• RoHS Compliant COG Technology: Adheres to strict environmental standards by using chip-on-glass (COG) technology, minimizing the environmental impact.
• LED Backlight: Features an energy-efficient LED backlight, offering a bright display while reducing power consumption.
• Super Wide Viewing Angle: Provides a wide viewing angle, ensuring that the display remains visible and clear from various perspectives without color distortion.
• 16.7M Colors (8-bit RGB): Supports up to 16.7 million colors, allowing for a rich and dynamic color range.
• Low Power Consumption: Optimized for efficiency with a power consumption of 1.5W for the LCD and 23.5W for the backlight, contributing to energy savings.
• Robust and Durable Design: Designed to withstand demanding conditions, making it suitable for industrial, automotive, and medical applications.
Product Listing – IPS Displays
- TX14D203VM0BPA
- 5.7″ VGA
- 640×480 resolution
- 131 x 102.2 x 7.6
- TFT
- LED
- IPS
- TX16D206VM0BAA
- 6.2″ HVGA,
- 640×240 resolution
- 173 x 70 x 7
- IPS TFT
- Transmissive
- 50Khrs LED
- TX18D200VM0EAA
- 7.0” LVDS
- IPS TFT
- 1920 x 1080 resolution
- 169 x 104 x 10
- Transmissive
- 70 Khrs LED
- Full HD
- IPS TFT
TX18D200VM0EWA
7.0” FHD
IPS TFT
Transmissive
1920 x 1080 resolution
178.76 x 115 x 11.75
70 Khrs LED
Touchscreen (Pcap touch)
Datasheet
Enter your email to download
- TX18D204VM0BVA
- 7.0” FHD
- IPS TFT
- Transmissive
- 1920 x 1080 resolution
- 178.8 x 115 x 5.5
- 40 Khrs LED
- LTPS
Datasheet
Enter your email to download
TX18D205VM0BAA
7.0″ WVGA
TFT
Transmissive
800 x 480 resolution
167.7 x 109.5 x 9
70 Khrs LED
Rugged+
SHB
Datasheet
Enter your email to download
- TX18D206VM0BAA
- 7.0” WVGA
- TFT
- Transmissive
- 800 x 480 resolution
- 167.7 x 109.5 x 9
- 70Khrs LED
- Rugged+
- SHB
- LVDS interface
Datasheet
Enter your email to download
- TX18D206VM0BPA
- 7.0” WVGA
- TFT
- Transmissive
- 800 x 480 resolution
- 167.7 x 109.5 x 10.6
- 70Khrs LED
- Rugged+
- SHB
- LVDS interface
- Touchscreen (Pcap touch)
Datasheet
Enter your email to download
- TX18D210VM0BXA
- 7.0” WVGA
- IPS TFT
- Transmissive
- 800 x 480 resolution
- 170 x 113.3 x 10.7
- 50Khrs LED
- Rugged+
- PCAP TP I2C I/F
Datasheet
Enter your email to download
- TX18D210VM0BYA
- 7.0” WVGA
- IPS TFT
- Transmissive
- 800 x 480 resolution
- 170 x 113.3 x 10.7
- 50Khrs LED
- Rugged+
- PCAP TP USB I/F
Datasheet
Enter your email to download
- TX18D211VM0BAA
- 7.0” WVGA
- IPS TFT
- Transmissive
- 800 x 480 resolution
- 167.7 x 109.5 x 9
- 50Khrs LED
- Rugged+
- LTPS
- LVDS interface
Datasheet
Enter your email to download
- TX18D212VM0BAA
- 7.0” WVGA
- IPS TFT
- Transmissive
- 1280 x 768 resolution
- 164.4 x 105 x 13.5
- 50Khrs LED
- Rugged+
Datasheet
Enter your email to download
- TX20D207VM0AAA
- 8.0” WVGA
- IPS TFT
- Transmissive
- 1280 x 768 resolution
- 189.5 x 119.4 x 11.6
- 70Khrs LED
- LTPS
- Rugged+
- TX20D208VM0BAA
- 8.0” WVGA
- TFT
- Transmissive
- 800 x 480 resolution
- 190.8 x 120.5 x 15.7
- 100Khrs LED
- Rugged+
- 1200nits
Datasheet
Enter your email to download
- TX20D208VM0BAB
- 8.0” WVGA
- TFT
- Transmissive
- 800 x 480 resolution
- 190.8 x 120.5 x 15.7
- 100Khrs LED
- Rugged+
- 1200nits
- w/o LED driver
Datasheet
Enter your email to download
- TX23D202VM0BAA
- 9.0” WVGA
- IPS TFT
- Transmissive
- 800 x 480 resolution
- 218 x 135 x 11.5
- 70Khrs LED
- Rugged+
- LVDS I/F
Datasheet
Enter your email to download
- TX23D202VM0BPA
- 9.0” WVGA
- IPS TFT
- Transmissive
- 800 x 480 resolution
- 218 x 135 x 12.65
- 70Khrs LED
- Rugged+
- LVDS I/F
- Touchscreen (Pcap touch)
Datasheet
Enter your email to download
- TX26D202VM0BAA
- 10.1” WUXGA
- IPS TFT
- Transmissive
- 1920 x 1200 resolution
- 232.1 x 153.2 x 4.7
- 40Khrs LED
Datasheet
Enter your email to download
- TX26D202VM0BYA
- 10.1” WUXGA
- IPS TFT
- Transmissive
- 1920 x 1200 resolution
- 265 x 180 x 9.65
- 40Khrs LED
- Rugged+
Datasheet
Enter your email to download
- TX26D207VM0AAA
- 10.1” WXGA
- IPS TFT
- Transmissive
- 1280 x 800 resolution
- 231 x 153.5 x 11.07
- 70Khrs LED
- Rugged+
Datasheet
Enter your email to download
- TX26D207VM0AVA
- 10.1” WXGA
- IPS TFT
- Transmissive
- 1280 x 800 resolution
- 265 x 180 x 13.42
- 70Khrs LED
- Rugged+
- PCAP TP USB I/F
Datasheet
Enter your email to download
- TX26D208VM0AAA
- 10.2” FHD
- IPS TFT
- Transmissive
- 1920 x 1080 resolution
- 241.9 x 147.8 x 12.6
- 70Khrs LED
- LTPS
Datasheet
Enter your email to download
- TX26D206VM0BAA
- 10.3” HD
- TFT
- Transmissive
- 1920 x 720 resolution
- 259 x 111.4 x 14.2
- 70Khrs LED
- Rugged+
- Super High Brightness
Datasheet
Enter your email to download
- TX31D200VM0BAA
- 12.3” HSXGA
- TFT
- Transmissive
- 1280 x 480 resolution
- 320 x 130 x 12.1
- 70Khrs LED
- Rugged+
- Super High Brightness
Datasheet
Enter your email to download
- TX31D200VM0BXA
- 12.3” HSXGA
- IPS TFT
- Transmissive
- 1280 x 480 resolution
- 341 x 146 x 14.35
- 70Khrs LED
- PCAP TD I2C I/F
Datasheet
Enter your email to download
- TX31D203VM0EAB
- 12.3″ HD
- TFT
- Transmissive
- 1920 x 720
- 333.1 x 150.5 x 20.6
- 50Khrs LED
- Rugged+
- Super High Brightness
- TX38D25VM0CAA
- 14.9″
- IPS TFT
- Transmissive
- 1280 x 242 resolution
- 386.82 x 85.57 x 13.06
- 16:3 widescreen
- TX40D202VM0BAB
- 15.6″
- FHD TFT
- Transmissive
- 1920 x 1080 resolution
- 367.86 x 219.51 x 14.71
- https://hectronic.se/wp-content/uploads/2024/03/tx40d202vm0bab.pdf16:9 super widescreen
